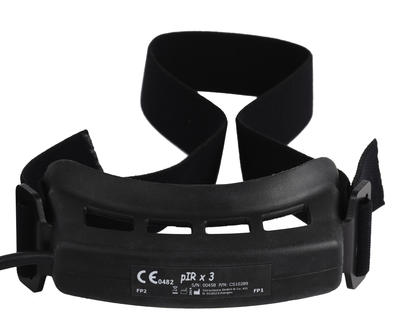

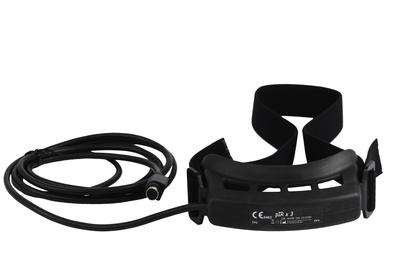

pIRx3 IR triple sensor
pIRx3 IR triple sensorpIRx3 IR triple sensorpIRx3 IR triple sensor

pIRx3 IR triple sensor

Item No.: A001211
Biofeedback device for measurement of temperature radiation from the forehead through infrared sensors during HEG (hemoencephalography)-biofeedback-therapy.

4.942,00 AUDplus VAT

All prices excl.possible shipping costs and VAT in the amount of the applicable statutory VAT rate.

Features:
  • Infrared triple-sensor (pIRx3) with headband for measurement of thermal radiation (passive infrared, pIR)
  • Functional device design for easy and comfortable attachment to the forehead
  • Position of infrared sensors at the EEG-electrode placements Fpz, Fp1 and Fp2
  • Easy to handle
  • Including 2 spare replacement straps
  • Integrated highly precise sensor amplifier and signal processing electronics
  • Integrated cable (2m) for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II.5s
  • Control of HEG-Biofeedback training via software Cygnet©
  • Approved as a medical device in the European Union and in the USA
Technical specifications:
  • High-performance design with integrated sensors, headband and direct connection to EEG NeuroAmp® II and EEG NeuroAmp® II.5s
  • Three integrated infrared sensors with wavelength range 5-15µm
  • Sensor-field of view: each 60°
  • Temperature range: 29-43°C, resolution: 0.01°K, reaction time: <0.15s
  • Power-supply via EEG NeuroAmp® device
Included in delivery:
  • pIRx3 biofeedback device with three infrared sensors, headband and integrated cable (2m) for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II5s
  • pIRx3 spare replacement straps (2 pcs)
  • Instruction manual
